Martin Portes et Fenêtres - Casement and awning window

An icon of contemporary style

Martin’s casement window is truly a strong value when it comes to choosing a window that is both efficient and elegant. Its design will blend perfectly with the contemporary style of your house. Equipped with a multipoint lock, Martin’s casement window will provide you with an unmatched security, solidity and tightness thanks to its high-quality weatherstripping and its sturdy hardware.

Options and features

Aluminum cladding

Stain colours

Energy efficient glass

Simulated divided lites

Mouldings

Hardware

Performance

Options and features

Specifications

Solid 4 ⁹⁄₁₆ inches (116 mm) top-quality pine frame.
1 ³⁄₄ inch Ponderosa clear pine sash with drainage groove.
Compression and flexible weatherstripping that provides superior protection against infiltrations.
Our standard: double glazing at ⁷/₈ inch (22 mm) thick with Low-E window film, argon gas and a high performance warm edge spacer.

Fiberglass screen with enameled aluminum frame. (Standard colours: Coppertone or white)
Highly efficient windowsill, a combination of an air decompression chamber and a false sill.

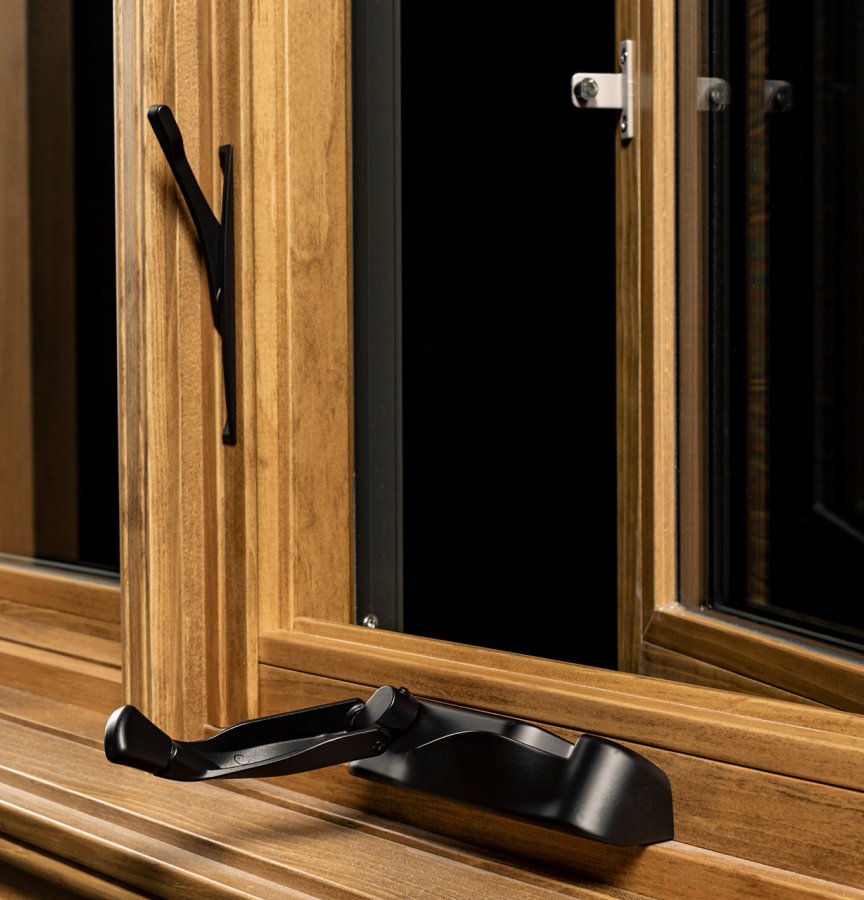

High quality opening mechanism with recessed folding handle.
Multipoint lock (2 or 3 points) for optimal security and air tightness.

Options

Triple glazing at 1 ¹/₄ inches (32 mm) thick with aluminum exterior cladding
Screen with wooden frame
Choice of exterior finishing mouldings
Variety of models and different configurations of simulated divided lites
Aluminum cladding and unlimited choice of colours

WHAT IS PONDEROSA PINE?

Ponderosa pine also known as “Western Yellow Pine”, is the largest of the western pine species which grows in the southern interior of British Columbia. Having a straight trunk and usually growing up to 25 to 30 metres tall with a diameter of 2 metres, it is a large-crowned tree.

The wood is generally straight-grained and uniform in texture. Common uses of ponderosa pine include furniture; window and door sashes, mouldings, and frames; panelling and shelving.

WOOD COMPARISONS:

Wood species	Air dried (20% moisture) – Density
Ponderosa Pine	449 kg/m³
Northern White Pine	400 kg/m³
Douglas Fir	481 kg/m³

*Sources : Engineeringtoolbox.com, Naturallywood.com

BETTERVUE©

Our standard screens now offer better vision.

ORIGINAL

BETTER VISION

Aluminum cladding

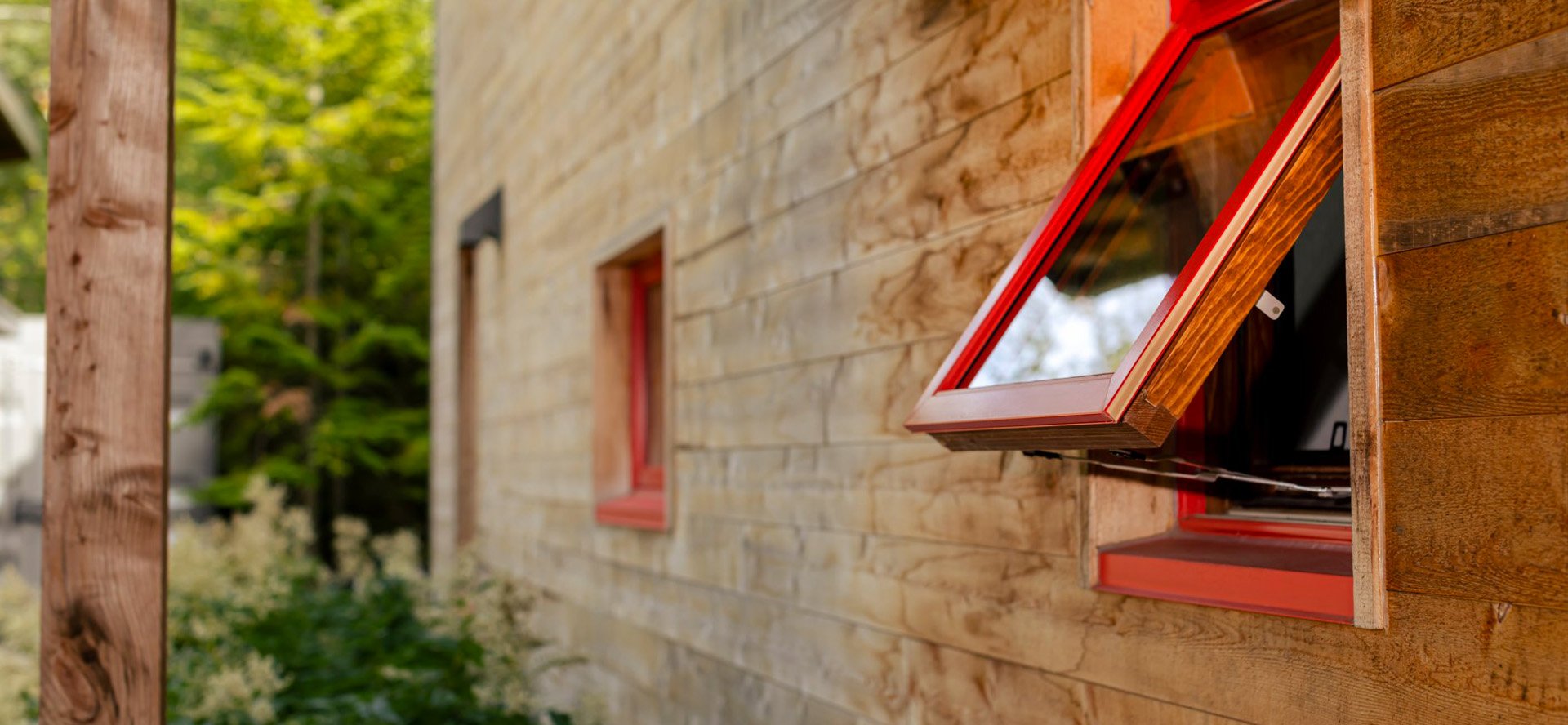

Aluminum-clad awning window

Our aluminum cladding

Easy to care for and robust in the long-term, our aluminum cladding offers aesthetics while simultaneously matching your Martin’s wood products. The thickness of our extrusions is largely superior to the aluminum sheet offered on the market which provide you with a maximum durability and an increased protection of your wood.

ALUMINUM EXTRUSION:
DURABILITY AND EASE OF MAINTENANCE

Combines the solidity of exterior cladding with the nobility of interior wood
The thickness of our extrusions is largely superior to the aluminum sheet offered on the market
Easy to maintain and corrosion-resistant
Recyclable: an asset for the environment

Paint colours - Martin's Inspiration

Like everything else we produce, our painting process is highly controlled and rigorous.

Our extrusions are painted with 3 coats of high-quality acrylic polyurethane paint. Our baked-on paint gives optimum results in terms of appearance, durability and corrosion resistance.

We apply the paint before assembling our products, which enhances the quality of the finish. Our paint recipes are meticulously designed and engineered for impeccable precision, using environmentally-friendly ingredients.

Unlimited choice of colours

Our colorists can also develop the colour of your choice from the name and colour code of a recognized paint manufacturer or from a colour sample. This gives you the freedom to let your imagination run wild. Here's an overview of our aluminum colours:

322

Bright red

430

Pure white

502

Ivory

506

Smoke

508

Sand

514

Cashmere

523

Coal

525

Black

536

Graphite

538

Coffee

540

Vanilla

542

Ocean blue

547

Sandy

554

Waltnut-brown

556

Forest green

559

Khaki

562

Commercial brown

5P3

Expresso

5P5

Graphite

5P6

Iron ore

The colours may slightly vary; these are presented for reference purposes only.

Stain colours

Finish equal to that of high-end furniture

Stain colours - Martin’s Inspiration

Applying a stain before assembling your windows and doors is not only a way to remarkably protect the wood, but also a great method to highlight its unique richness and beauty.

Being a natural, warm and versatile material, the resistance and durability of the wood will considerably be enhanced by the application of one of our rich and durable stains.

Factory applied, our stain is then protected by coats of protective varnish providing a level of quality that is simply flawless!

Our 15 exceptional translucent stain colours

Here is a glimpse of our shades:

3450 - T8

Black walnut

24 - T3N

Butternut

1134 - T4N

Caliwood

1210 - T17N

Chesapeake Grey

T16N

Dark knight

17 - T6

Expresso

Golden brown (Martin)

16 - T5

Golden Harvest

1107 - T1N

Golden wheat

57 - T14N

Mahogany

28 - T11

Portobello

73 - T15

Red mahogany

3420 - T7

Red Oak

34 - T12

Teak

70 - T13

Walnut

The colours may slightly vary; these are presented for reference purposes only.

ENHANCES AND PROTECTS THE BEAUTY OF WOOD

Wood is a noble, warm and versatile material. Carefully protected by a quality stain, its resistance and durability are enhanced.

UNRIVALLED PROTECTION AGAINST WEATHERING AND UV RAYS

Our stain creates a veritable shield. The natural oils and resins in this stain infiltrate the wood's cellular structure to form a long-lasting protective barrier.

WATER-BASED STAIN: ANOTHER STEP TOWARDS PROTECTING THE ENVIRONMENT

By introducing water-based stain products, Martin is a forerunner in its ongoing efforts to support sustainable development.

Energy efficient glass

A superior energy performance!

In addition to the Energy Star® standard, which is used to assess the energy performance of your windows and doors, we also recommend that you consult the harmonized North American Fenestration Standard (NAFS), more commonly referred to as "structural performance testing".

The NAFS standard evaluates a window or door's resistance to climatic elements such as wind, as well as its air and water tightness.

In Canada, the minimum requirements of this standard are specified according to your locality and are based precisely on your region's climatic conditions.

Before purchasing your product, we strongly suggest that you validate the minimum performance category (PC) required by both your geographical location and the immediate surroundings of your home (location, product height, type of terrain, etc.).

Find your minimum PC easily with Fenestration Canada's Performance Calculator.

COMBINING AN INNOVATIVE GLASS UNIT AND AN ULTRA-EFFICIENT SPACER

To reduce energy consumption, Martin uses as standard energy efficient Low-E glass (4.2) with Argon gas combined to an air-tight spacer. Many of our products are ENERGY STAR® approved.

ADVANTAGES

Reduces heat loss in winter
Keeps the interior cooler in the summer
Reduces heating and air conditioning costs between 5% and 15%
Prevents textile surfaces discoloration
Helps to keep a balanced humidity level in the house
Reduces condensation risks on the glass surface

INSULATING GLASS

The Sungate^® 400 Low-E and argon energy efficient glass unit increases your comfort in many ways. This superior quality glass keeps you warm during winter’s cold nights and cool during the hot summer days. While allowing in the benefits of natural light, it also ensures a high level of energy efficiency.

SPACER

The best warm edge spacer in the world:
Swisspacer Ultimate
It has the best thermal value in the world with a 20% reduction in thermal conductivity compared to the best product currently available on the market.

Simulated divided lites

For a distinctive style and a very special design, add wood or aluminum simulated divided lites on both sides of your sealed units. Our contemporary and traditional models will be a wonderful complement to your products specially crafted according to your personal choice of sizes and configurations.

TRADITIONAL
- 7/8 and 1 9/16 inch in natural wood
- 7/8 and 1 9/16 inch in aluminum extrusion

CONTEMPORARY
(PUTTY GLAZE)
- 7/8 inch in natural wood
- 7/8 inch in aluminum extrusion

CONTEMPORARY
(SQUARE AND FLAT)
- 7/8 and 1 9/16 inch in natural wood
- 7/8 and 1 9/16 inch in aluminum extrusion

Here are just a few examples:

Mouldings

Embellish your Martin’s windows and doors by adding finishing mouldings. Several options are now available: wood mouldings or extruded aluminum mouldings. Of various sizes, shapes and designs, they will complement perfectly your Martin’s creations.

1 3/4 inch
TRADITIONAL

3/4 inch
TRADITIONAL

3 1/2 inches
TRADITIONAL

1 3/4 inch
CONTEMPORARY

Hardware

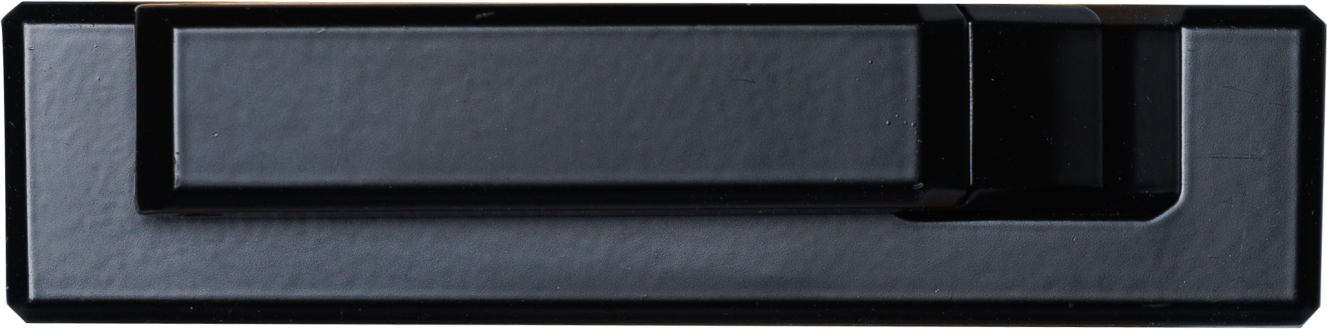

CONTEMPORARY HANDLE

Colours:

Matte black · Satin nickel · White

LOCK

Colours:

Satin nickel · Black · Coppertone · Dark bronze · White · Aluminum

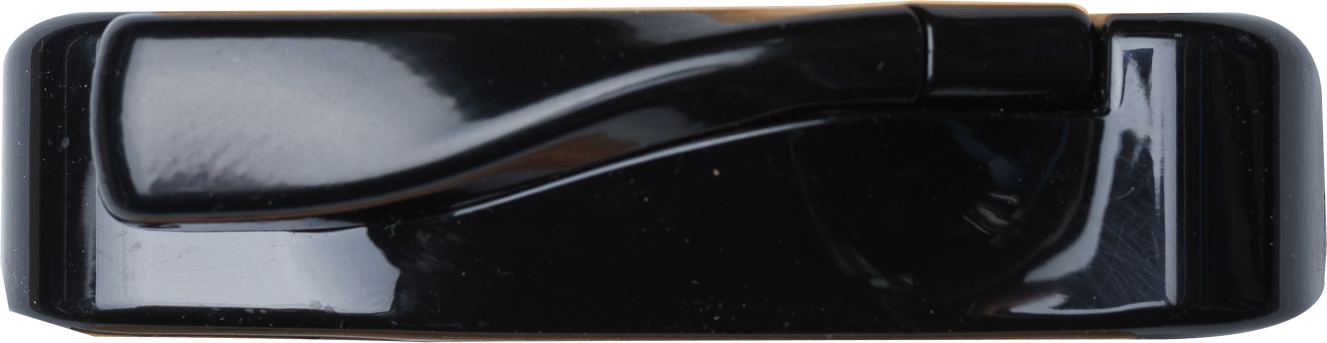

TRADITIONAL HANDLE

Colours:

Black · Coppertone · Dark bronze · White · Aluminum

Hardware colours available for these products

Aluminum

Black

Coppertone

Dark bronze

Matte black

Satin nickel

White

Performance

ENERGETIC AND STRUCTURAL PERFORMANCE

ENERGY STAR^® AND NAFS STANDARDS

When evaluating energy performance ratings for your doors and windows, in addition to adhering to Energy Star^®’s standards, it is important to refer to the harmonized standard set by the North American Fenestration Standard (NAFS). The NAFS specification is more commonly known under the name of “structural performance tests.”

As well as evaluating air and water tightness, the NAFS standard evaluates a door or window’s resistance to natural elements such as strong winds.

In Canada, the standard’s minimum requirements are determined according to your region and its weather conditions.

Prior to purchase, it is important to confirm the minimum required Performance Grade (PG) for your region and the surroundings of your home (location, product height, type of land, etc.).

Easily get your minimum PG with the Fenestration Canada’s performance calculator.

You will find below our energetic and structural performance results:

Tradition - Casement - Wood - Aluminum-Cladding- Exterior

Tradition - Casement - Wood - Natural

Tradition-Awning-Wood -Aluminum-Cladding- Exterior

Tradition - Awning - Wood - Natural
